Though I’ve done a couple of shop-oriented things, most of the work I’ve been doing in the last couple of weeks has been milling and laminating stock for the new bench/table/thing/whatever it’s supposed to be. I’ve only done a little bit at a time, but at this point, I have all four legs milled to size, and the top mostly together. The top is currently in two halves, and I glued up the second half today:

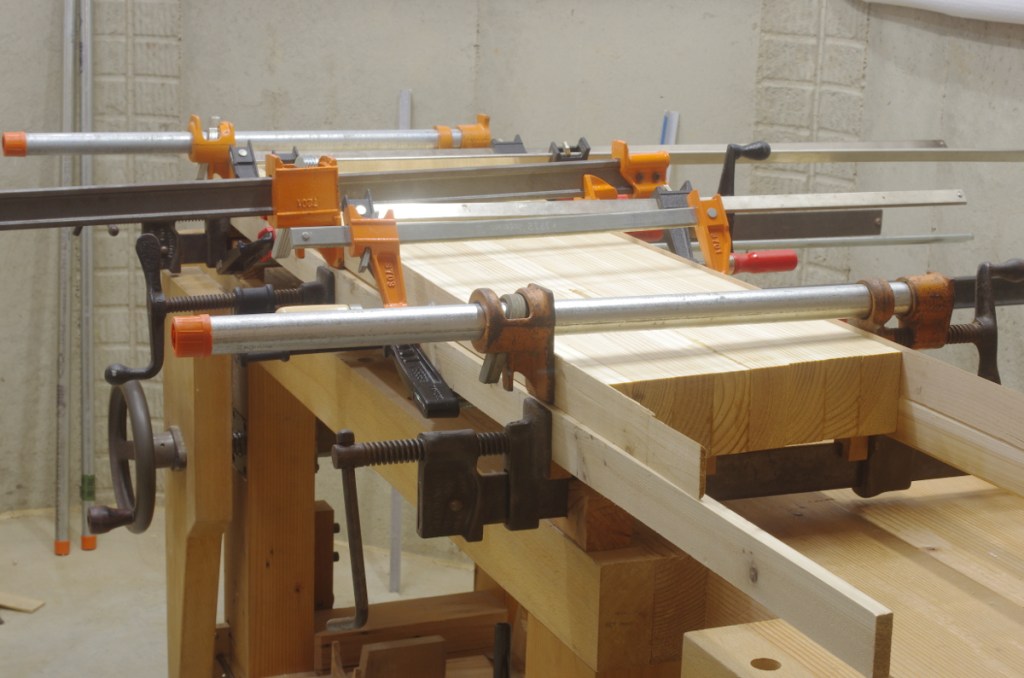

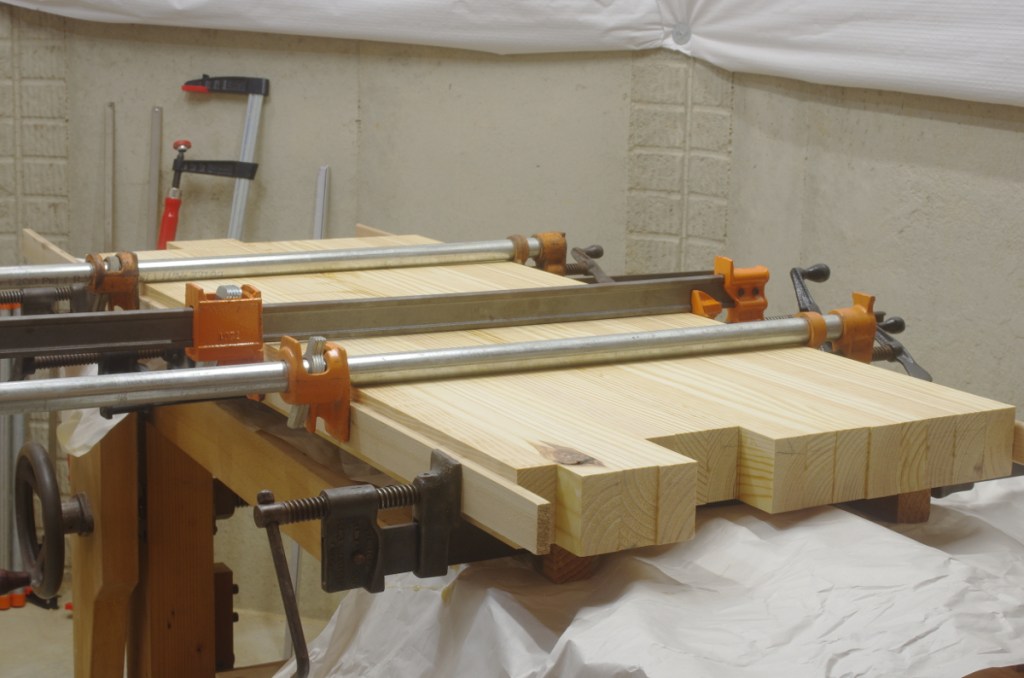

The clamp situation still stinks, but I think I’ll be able to manage getting the two halves together with what I’ve got by using single clamps midway through the thickness rather than the doubling up that I’ve been doing up until now.
There’s still a bit more to go on all of this laminating, though–I haven’t started on the stretchers yet. I’ve also nearly emptied another bottle of glue, but that comes with the territory.

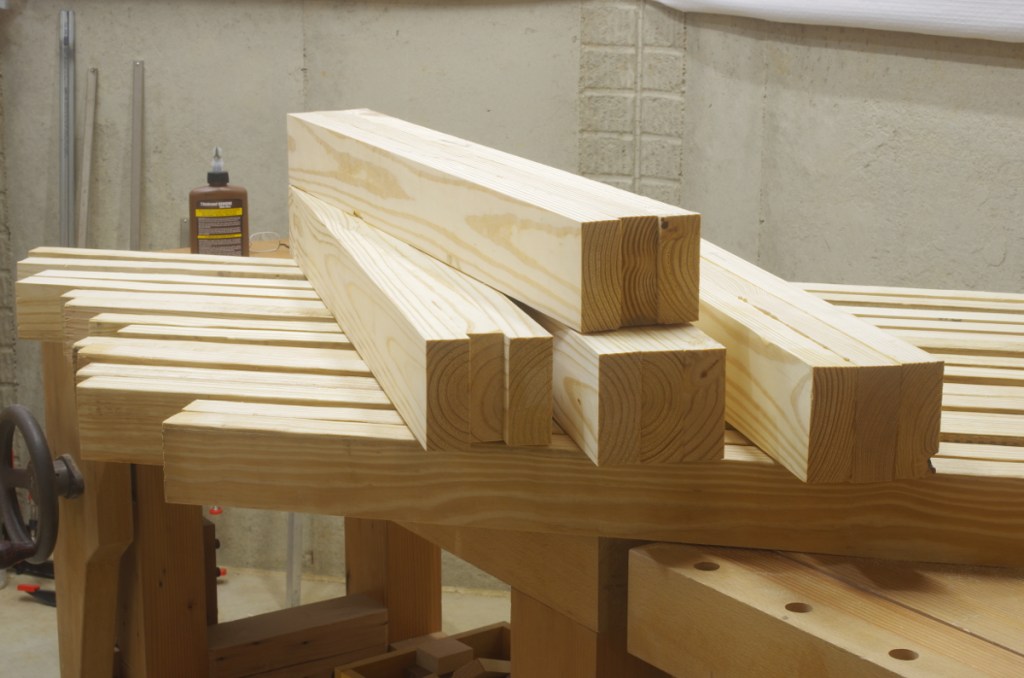

I’ve got the legs glued up (laminated) and close to final dimension, and started ripping boards for the top today. And I almost apologize for the horrible lighting in the front. One of these days, I’ll get an additional light or two for this side of the bench.
I have decided to aim for a thickness of 2.5″ (65mm or so) on the top. I do this with some trepidation; I’d prefer a little thicker, but I just don’t have the wood on hand. My main Roubo-style bench (also shown above) is about 3.5″ thick. But I figure this will be OK, because I don’t actually plan to do much handwork on this thing. I don’t see a reason why I wouldn’t use my main bench for planing, and on the off-chance that I decide to mortise or something on the new bench, I’d do it over a leg anyway.
I have not decided on the width. I was considering around 20″ (510mm or so), but I could go wider, again because this is not my main bench and the problems with wide benches will not matter on this new one.
Another note is that I will likely use a strip or two of hardwood for the front part of the bench, as I did with beech on my main bench. I have some soft maple on hand that should fit the bill.
I’m almost out of glue. I ordered more liquid hide glue, but I do not know when it will arrive, given current circumstances. If that does not ship soon, I do have a backup: hot hide glue. For now, though, I’m going to let those pieces for the top destress a little before I flatten and prepare them for face-jointing.
With the coffee table in the finishing stage, it’s time to move on to the next thing. I haven’t quite figured out what the next furniture project will be, but I do have a fairly immediate need in the shop for something to help out with a number of tasks, including assembly, storage, and miscellaneous kinds of work.
There are a few partial solutions to this problem, including framing up a wall to add some shelves for storage, but due to current events, I don’t think I’ll be getting the help I’d prefer with the framing down there.
So I think I’m going to make another workbench, meant as an auxiliary to the Screwbo. The reasoning is that it will solve the immediate organizational problems, and then when I get around to framing the wall or something, I can move the new bench to another part of the shop, where I already know it will be useful.

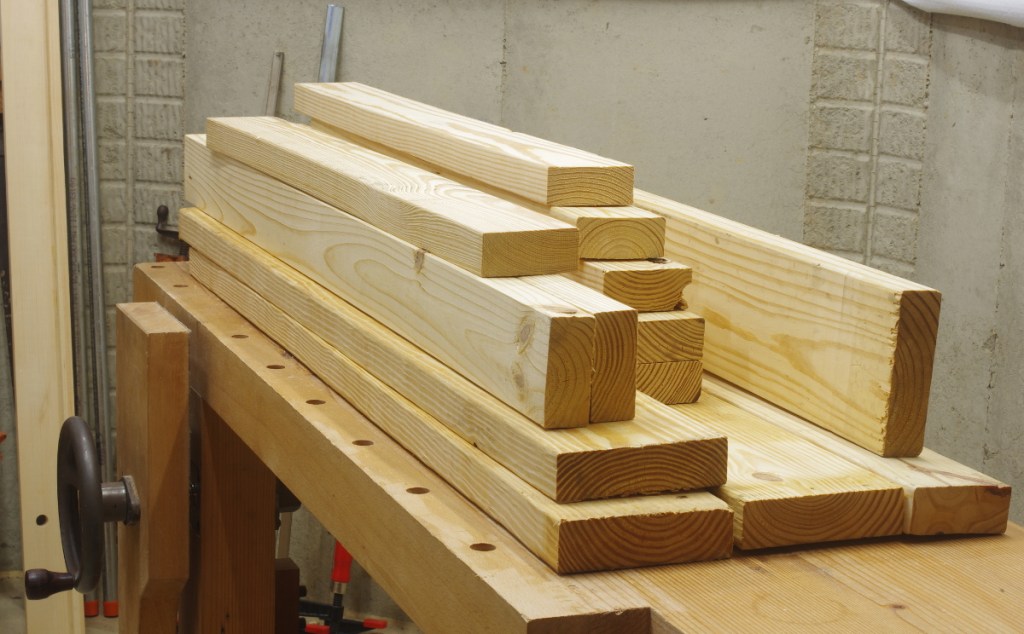

To that end, I picked through my hoard today to get some wood to get the frame started:
This is southern yellow pine. I don’t have a good source of it here (apparently the closest big-box source is in FredericksburgRichmond), but the borg nearby has “project wood” that happens to be SYP. The catch is that, due to bad planning, it’s cut into three-and-four-foot lengths.
The length should be OK, because I’m imagining something perhaps around three and a half feet (1060mm or so) long. I haven’t decided on the benchtop thickness yet.
This will be the first “big” thing that I’ve done in SYP. I made a stand with it about a year ago and was happy the way that turned out (even if it was sort of a quickie).
In any case, it’s a fair amount of wood to mill. Time to get rolling.
The vise installations meant that the bench was nearly complete. I did some other minor preparation, such as plowing the grooves for the (as of yet nonexistant) sliding deadman and sawing the legs to length, and then I was ready to assemble. I’d never actually assembled the bench, and for a while, I wasn’t really sure how I’d do it. Thinking about it made my arms hurt.
Thankfully, I came to my senses at some point, and when I was ready, I set out two 2x4s to support the benchtop. With the help of SWMBO, I put the top upside-down on these boards:
Then I was able to put all of the legs and stretchers in for the first time. Everything fit perfectly:
Getting the bench right-side-up simply involved turning the bench on its side (there’s another board underneath the leg here to protect the roller bracket):
And one final lift to get it on its legs for the first time.
Next, I installed and fine-tuned the chops of the leg and tail vises. The description of that is in those preceding posts (meaning that, yes, I was done with this business before I posted those). It was fun to use the new bench for finishing itself! However, there was one little minor vise item that I hadn’t done, and that was to make a handle for the parallel guide pin. I’d considered making this completely spartan (basically, just a block of wood with the pin in it), but then I noticed that I had just enough wood in what remained of the piece of cherry that I’d used for the roller brackets, and made a really quick-and-dirty handle with my saw rasp:
Finally, I sawed off the uneven ends of the bench and it was done:
The front view, somewhat encumbered by the lack of space in the shop:
There are a few minor things left to do, such as the sliding deadman, the shelf, and maybe a tool rack. I can do those at my leisure.
Thanks again to Bill K. (who supplied the douglas-fir) and everyone else who helped me with this. Now it’s time to get back to making furniture.
Right on the heels of the leg vise installation, I did the tail vise. I’ve never had a tail vise, but I’ve always wanted one. As it turns out, AJCP&R got me the Veritas quick-release version about two years ago (thanks again!), but it had to sit in its box for all of this time, waiting for this new bench to be made. That day finally arrived.
There’s been a bit written about the Veritas vise, but what I don’t see much out there about how versatile it is if you’re willing to play around with the shape of the chop. For example, although it’s designed to be used in conjunction with a wide front apron, that’s not necessary. In addition, you don’t need a whole 17″ of free space for overhang on the end. I broke both of these rules in my installation and I got away with it.
For those who have never seen the vise hardware, it consists of a the vise itself and a mounting plate that you attach to the bottom of your bench. The mounting plate provides the accuracy you need to keep the vise chop just far enough away from the edge of your bench to slide freely. You’re supposed to place the plate 1/4″ from the chop edge, all the way at the end of the bench. I didn’t do that. I discovered that you can get away with moving it about two inches away from the end of the bench, as long as you don’t obstruct the holes for mounting the chop (and you could even do that a little, if you’re willing to give up a bit of the vise’s travel):
The 1/4″ on the front side, however, is a (mostly) hard and fast rule. Here’s how the vise looks aligned on the mounting plate:
Notice that some of the vise hardware slips underneath the end of the bench. Also, some of the hardware on the other side (near where the leg will go, on the right side of this photo) protrudes in that area. I was able to do this because I decided to make the chop deep enough so that this little bit of hardware could slip behind the leg. You could do even more by widening the chop a bit more, but I personally wouldn’t recommend more than four inches because otherwise, you might put the hardware in the way of holdfast holes or something. As long as you don’t have anything silly up there such as a top stretcher between your bench legs, you should be fine.
OK, so the hardware fits. The next rule to break was the wide front apron. Because I designed this for a deep chop, I was able to make the inside of the chop wide (for the mounting screws), but the outside (the part that goes along the front of the bench) would be just the same 3.5″ beech that I used on the rest of the bench. Here’s a view of the chop upside down:
Oopsie on the blowout for the washer holes at the edges, but it hardly matters. At this point in the bench build, I was starting to starve for wood–I had very little douglas-fir of substantial size left. So for the backing piece, I milled and glued up two smaller pieces, and then glued those to the beech.
When it was upright and finished, it looked like this:
I had sort of a hard time trying to decide where to put the dog holes. In the end, I actually followed Lee Valley’s instructions and put the centers 1″ from the front of the bench. I could put in another row if necessary, but somehow I doubt it will be.
This vise really was a snap to install. You have to be quite careful when installing the mounting plate, but it took me longer to the make the chop with all of the milling and glue.
With the large frame components done, I could now work on the bench’s vises. Like everyone else in the known universe, I got a Benchcrafted Glide leg vise for the front (thanks SWMBO!).
The installation is not what I’d call easy, but it’s not ridiculously difficult, either. The first step was to put the holes in the chop (a big chunk of beech I found in the pile), and the leg.
For the chop, you’re supposed to put a shallow hole for a washer around the screw clearance hole–a 1.75″-diameter hole. The only thing I had in that size was an expansion bit. Now, those bits are not known to be terribly good even in soft woods, much less something like beech, but thankfully, this thing needed be just 3/16″ deep, so I used it mainly for the cutting spurs to get the circle.
Now, the main screw clearance holes in the chop and the leg are supposed to be 1.5″ wide, and I didn’t happen to have a No. 24 bit, either. I was all ready to wimp out and turn to the dark side, and in fact, I’d brought the chop and the leg to my friend Jasen’s place to make use of his drill press and Forstner bit. However, while preparing, I poked through his box of auger bits and found a No. 24 Irwin solid-core bit. Arrangements were made to abscond with the bit, and so mad props to Jasen for letting me do so!
I used my 14″ sweep monster (a Millers Falls #730). For those of you who have never seen a bit this large, consider the following: The brace’s chuck was just barely able to hold the bit, and only because they tapered the shaft thinner near the end.
This is the type of job that you have to break out the squares to keep the bore straight:
This is a big job, and it was no small amount of effort to turn the brace. The most difficult part of it, however, was to keep everything straight while exerting enough force.
Once the hole was through, I knocked out the waste in the outer washer hole–my Veritas mini router plane struck again:
So, when everything was said and done, I had two holes: one fancy, one not-so-fancy, both big:
After this, it was off to mark, drill, and tap the holes to attach the handwheel and screw to the chop. This is a particularly tricky job–you really need accurately lay out and drill those holes. (Thank goodness for auger bits.)
Now, a suspicious reader may have examined some of the photos above and noticed that I was using a peculiar piece of sacrificial wood underneath the chop for blowout prevention and lead-screw continuity:
This might qualify as the dumbest use of cherry in history, but notice the check (actually, compound checks) in the center. This precluded me from making a saw handle or something nice with it, but after I finished wrecking the center, I sawed off the usable wood on the sides for the Glide vise’s roller brackets:
This is sort of more silly luck than clever, I’d think–this offcut was the only thing I had around that wouldn’t require sawing up another board just for a couple of 6″ blocks.
I should also mention that with this bench, I am not trying to use a bunch of different woods to make it a showcase piece–I just want the thing to work. So, having now used three woods (the other two being douglas-fir and beech), I figured I’d use whatever I could find for the parallel guide, and I found none other than the last offcut of that nasty birch that I used as a secondary drawer wood on the second nightstand project.
Another thing that you may have noticed is that the hole in the leg isn’t horizontally centered. This is where I might eventually look like a goat, but I decided to try something a little different with this vise. Looking at the design of a leg vise and the diagonal one that Schwarz used in the “English Workbench” in his first workbench book, it dawned on me that the spot with the highest and most stable gripping power on a leg vise is directly opposite the parallel guide. On most of them, that’s in the center of the chop at the top, but that’s not where you would clamp a number of workpieces because the vise screw is in the way.
But on the diagonal vise, you don’t have that problem. So for better or for worse, I decided to put the parallel guide off to one side of the chop, and in doing so, move the “grip sweet spot” (or whatever you want to call it) off-center at the top of the chop, so that it wouldn’t be right above the screw. Here’s a shot showing the mortise for the parallel guide and a dowel leading to where that spot will be on my bench:
The off-center hole in the leg is part of the design. The idea is to place the spot with the maximum force somewhere around the area where the side of the leg meets the top.
In addition, by moving the parallel guide over to the side, I could move the guide’s clearance mortise in the leg over to the side. There, the parallel guide would slip neatly alongside the giant lower side stretcher rather than above or below, sidestepping one of the common issues when installing a leg vise.
It’s easiest to show this in the nearly finished installation:
Now, at this point, I should mention that more often than not, when you try to get clever, you end up shooting yourself in the foot (especially if you’ve never done this before). To put it lightly, this configuration does not come without difficulty. In addition to having to be extra careful with your layout, you’re also introduction an element of imbalance to a vise that really seems to have been designed to be horizontally symmetric. It goes without saying that when you go tinkering, the chop will want to lean in one direction, possibly binding the vise screw and sliding the parallel guide up against its clearance mortise.
To my surprise, it’s been working well so far. It took some fine-tuning, but the the parallel guide rollers, when set just so, seem to do a good job at supporting a good deal of the weight of the chop. The acetal bushing that comes with the Glide is also instrumental in keeping the chop inline. As an extra measure, I reduced the weight of the chop a bit by sawing off a bit of the lower right, but this may have just as well been to be able to use the offcut for something else.
I still might get burned by all of this, so let’s see what happens. I’m really due with this project–I also lucked out with the length of the vise screw and parallel guide. When vise is closed, they are about 1/8″ from hitting the inside of the rear left leg of the bench.
Now at this point, I have to make a confession: I used a power tool in the vise construction. It’s not what you might think, though. You see, the Glide vise requires you to tap threads in wood. Miraculously, I somehow already had the four taps required for the job (picked them up at a garage sale once but never used them), and I had everything I needed to drill the initial holes for all of the taps by hand. However, what I didn’t have was a tap wrench with a collet large enough to hold the two largest taps. At that point, I had to either buy another tap wrench or think of something else. The taps fit in a brace chuck, but the action on a brace can be a little bit too wobbly for this job. I decided that I didn’t have the stomach to go out and buy some (likely crummy) tap wrench for just this time, so I’d actually follow the instructions for the Glide for a change. I chucked the two big taps into my cordless power drill and threaded the holes with the dark side of the force.
With the legs made, it was time to move on to the stretchers. The method I used was a combination of knockdown and mortise-and-tenon joints. I first made the joints with very short tenons. These are primarily for quick alignment of the joint during assembly.

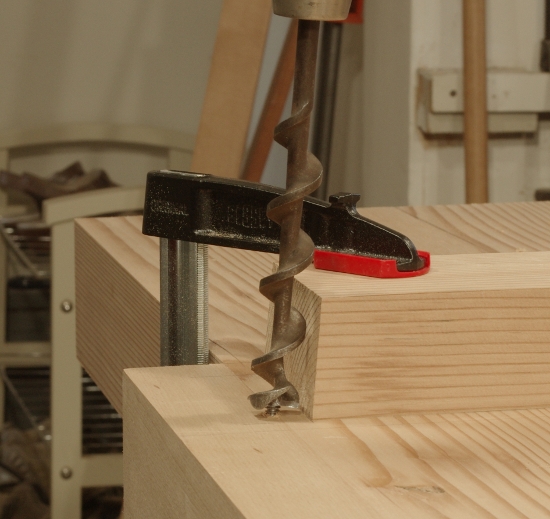

Then I bored holes square into the legs and had them come out right in the center of where the mortises were. (In reality, I did this before making the joints, but you get the idea.)
The idea is to slip a bolt into the hole and into a captured nut in the stretcher.

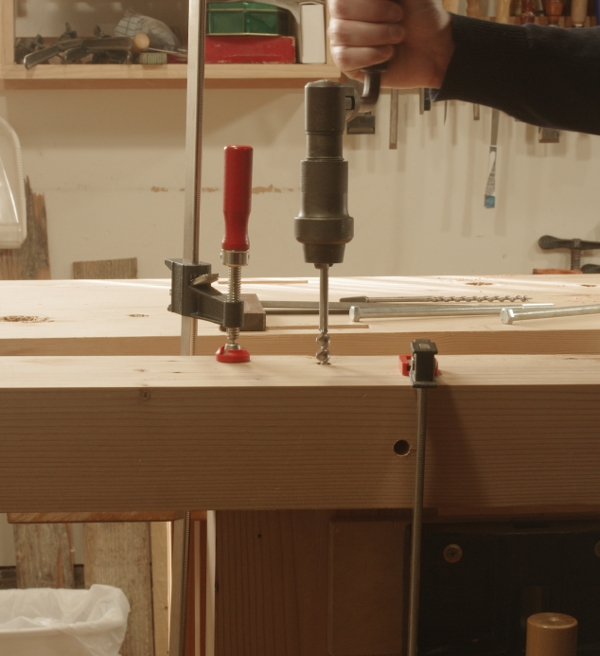

The trickiest step was to bore precisely into the endgrain of the tenon pieces. To do this, I assembled the joint, secured it with clamps, then went through the existing hole down into the tenon piece below:
I was surprised at how quickly the Jennings bit flew through the endgrain. I recall having a lot of trouble with endgrain when I did the first bench, but I suppose that having a halfway decent complement of bits and knowing how to sharpen them goes a long way.

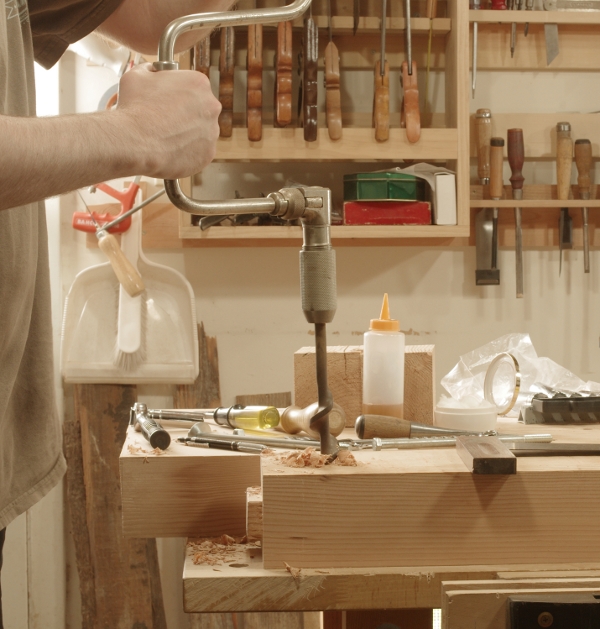

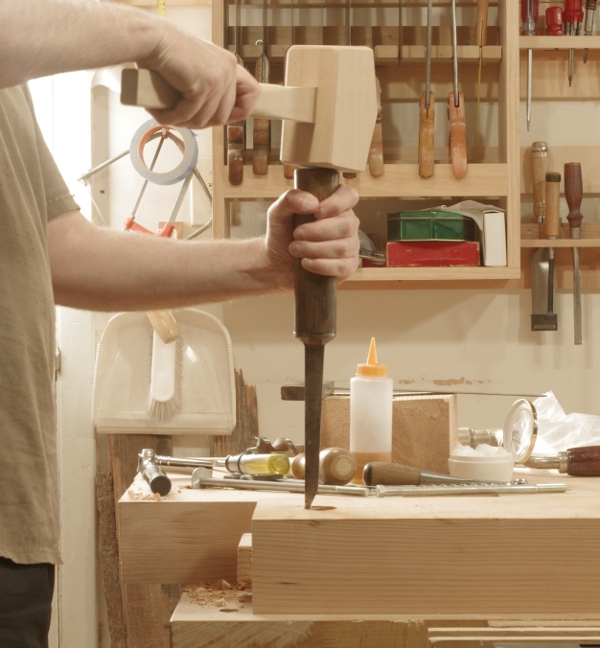

Next was to make the mortise for where the captured nut would go. I hit it first with my Irwin 20 (1.25″) bit in my 14″-sweep brace (maybe you could call it the Irwin Workout from Millers Falls):
I didn’t go all the way–the captured nuts will not be visible from the outside of the bench.
Then I made one side of the hole flat for the nut and washer to register against. This was an easy job with a big “pigsticker” mortise chisel:
Finally, here is how the joint appears in the end with the bolt, nut, and washer in place:
If this looks a little ugly, it is. This side of the stretcher faces the inside, where no one can see it. Therefore, I didn’t bother with anything other than rough planing (especially important to me, given how quickly this wood dulls blades). The mortise shape is somewhat interesting, and that’s something to maybe file away. But on the other side (the face side), it looks like a normal (tight) mortise-and-tenon joint.
The past few weeks have primarily involved milling, milling, and more milling. Oh, right, there was also a trip to Pennsylvania. But after all of that excitement, I was able to glue the top. I used every medium- and heavy-duty clamp that I had for it:
Then I glued that piece of beech to the front, flattened the top, then flattened the bottom.
I’m not going to talk too much about this flattening and milling process because it was exhausting enough just to do it. The main reason was that the douglas-fir just ate up my plane blades–I constantly had to resharpen them. I’m not sure why this is the case, but it might have something to do with the hardened resin in this old wood. In any case, dull blades are next to useless on this stuff, and sometimes it takes a little while for it to dawn on you that you’re working with dull tools.
In any case, I was finally at the point where I could fit the legs. I’ve been thinking about the joints for the legs for a long, long time. I can’t say that I understand the monster through tenon joint illustrated in Roubo’s book. Schwarz only seems to say that “well, this is how it’s illustrated there, so that’s what I’m gonna use,” and that’s all fine and good, but I still don’t get it. Sure, you want a tenon, but should it really be through? That makes the top more difficult to reflatten. Plus, the through joint creates a weak point in the front left, especially if your wood over there is suspect to begin with. Roy Underhill illustrated what happens to that sort of thing at WIA.
Believe it or not, I like Underhill’s rising dovetail idea better for this kind of joint. Not that it’s any better with the weakness in the wood, but there is one property of it that I haven’t really seen anyone talk about in conjunction with a leg vise. If you think about it, because the top sinks down from the front, when a leg vise clamps something into place against any part of the top, it wedges the top into the leg.
As cool as that joint looks, I still did not want to use a through joint for my legs, so I just used angled mortises and tenons so that the top would still sink down from the front. I used a very slight angle (using the “eh, that looks about right” calculation with the sliding T-bevel), and before I started, I made a couple of guides to help. Here’s one that helped me guide my brace and bit as I wasted most of the mortise.
After boring and chopping out most of the waste, I registered the chisel face against this guide to pare out the sides at the angle necessary.

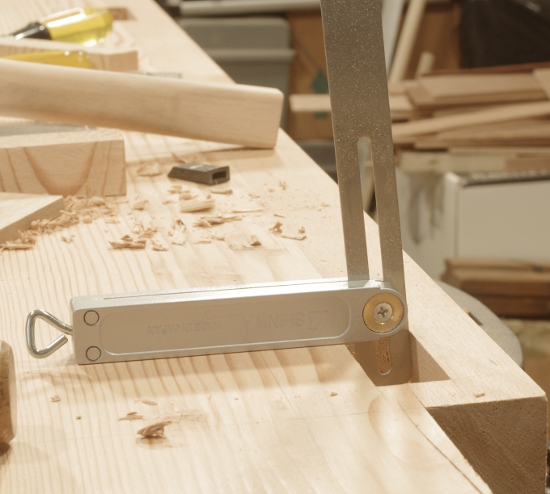

One advantage of making mortises this large is that you can shove a T-bevel into the mortise to verify that you got the side correct:

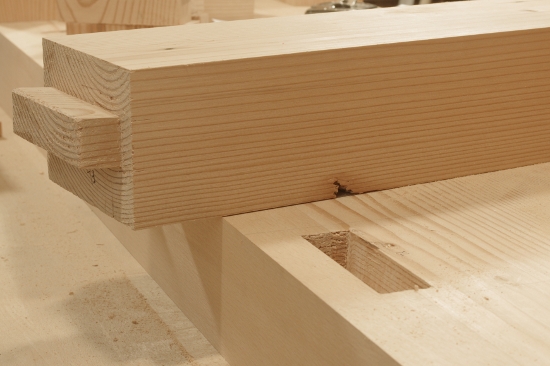

Here’s a finished joint (this time for the rear of the bench). It’s only a little more than an inch deep, and I do not plan to use glue, but I figure that the mass of the top will be more than enough to keep it in place:
If I’m wrong, I’ll use fasteners to wedge the joints into place.

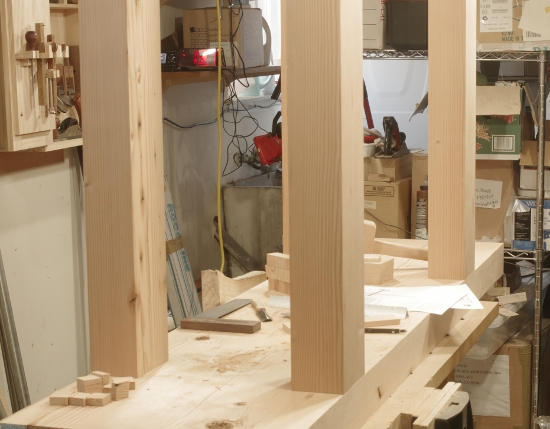

It was a fine sight when I completed all four joints for the top:
These joints, however, didn’t really take much time (despite having only my fine-toothed joinery saw available to cut the tenons). Sure, I had to be a little more careful with the angles on the joints, but compared to process of preparing the top that I’d just been through, it was nothing.
Next up: Getting the stretchers in place, and installing the vises.

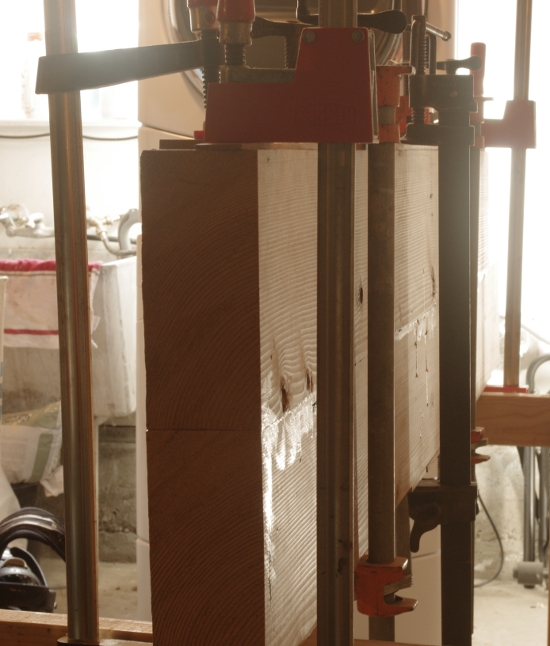

At the end of the last installment, I had the workbench top-milling task to deal with. I’ve never worked with anything this large before, so I didn’t quite know what to do. A little rough experimentation revealed that the grain reversed on the faces of the timbers about two-thirds of the way across, where the face became tangential to the growth rings (a common occurrence in this type of sawcut).
In light of this, I decided to rip the timbers at the point that the grain reversed, so that I could match the grain direction across the entire width of the top (it also didn’t hurt that there were a lot of monster knots on the “thin” side). That would give me two roughly 8″ sections that I’d be able to mill and glue up.
The first thing I needed to do was support the timbers while ripping. I had a choice between making sawbenches or just going out to get a couple of 2x4s to fill in the sawhorse brackets that I had on hand (I’d long since scavenged most of the pieces I used the last time I used the sawhorses). I opted to defer the sawbenches again and got the 2x4s.
Ripping six feet on two of these timbers was a chore, but not quite as bad as I’d expected. It helped that I sharpened my big rip saw before. In the end, I had to make four of those cuts (two at the point where the grain reversed, and two more at the ends to eliminate some excessively bashed-up wood).

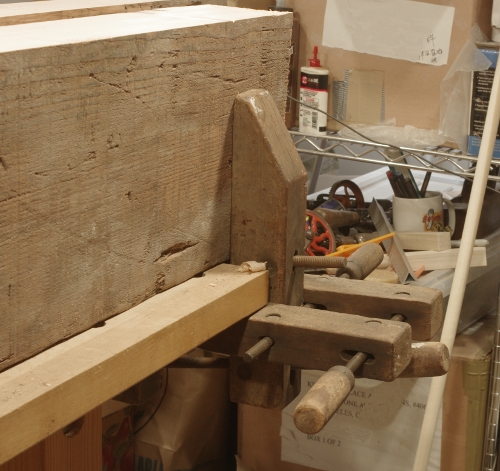

So then it was on to milling. Now I really had no clue what to do. The first thing I tried to mill the edges was to fasten some handscrews in an odd arrangement to hook it to the end of my bench:
This was quite a secure arrangement, but it didn’t work for two reasons: First, there was too much junk in the shop to the right of the timber to get a jointer plane over there, and second, the timber was now far too high off the ground for me to reasonably bear down on.
After some fretting and sulking, I reminded myself that Toshio Odate wrote about how Japanese carpenters secure stuff both big and small against a wall (or something). Looking at pages 6-7 of his Japanese Woodworking Tools book, I tried to think of how I might be able to do this with with western tools. The one really important thing, it seemed to me, was to be able to keep some clearance between the end of the timber and whatever you’re securing against.

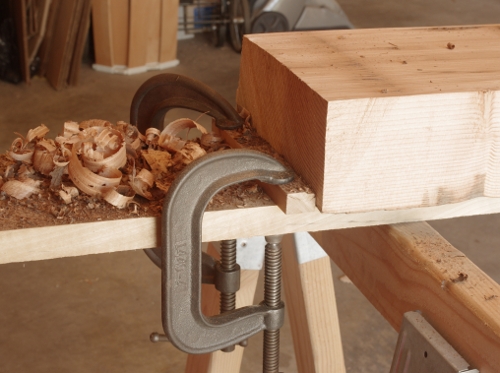

In the end, I came to this arrangement with the same sawhorses that I used to rip the timbers:
One end of the timber rests on a board with a clamped stop, and that board sits on top of the sawhorse with one end secured against a timber in the house. Here’s a look at the stop:
This is really nothing special, but it surprisingly worked quite well and I was able to mill and joint the timbers with no further ado.
Well, the “ado” would not apply to the task of lugging these timbers all over the place as I ripped, milled, and flipped them around. Ugh.
After I was finished jointing, I put the timbers side-by-side on my bench to see what I now had to deal with. Combined, they were 16 inches, and looking at this surprised me. I’d been thinking that I wanted 20″ across the top of the new bench, but now I wasn’t so sure. I believe that I’m going to trim that down to 18″, so now I need only one more 2″ wide strip to go across what will probably be the front of the bench.
The difficulty: Right now, I don’t have any pieces of douglas-fir in the appropriate size. The offcuts from the big rips are really a bit too knotty for my tastes (big knots in long-seasoned douglas-fir are essentially indestructible). I thought of getting one more timber, but then I had this other idea. I happen to have a piece of well-seasoned 8/4 beech that’s just the right length and width. Would it make sense to use that in the front? It doesn’t dent as easily as douglas-fir (even the excessively old stuff that I have).
Seems to me that it (or some other piece of hardwood) would work. Oh well, I won’t be able to work on this for two weeks now, so I’ll have that time to think about it.
So, what’s been happening with the new workbench? Not much, because I needed more wood, so I’ve instead been dorking around the shop, cleaning things, and rehabbing old tools.
Last Sunday, I got the next installment of wood, and I now have all of the legs and half of the stretchers milled out:
That was the easy part. The task ahead of me is considerably tougher:
Those are two 6.5′ 4x14s that will somehow comprise the top in the end. I really have only the faintest idea on how I’m going to support these things as I’m ripping and sizing them. I suppose I could finally make some sawbenches.
