Accompanying Side Table: Legs

Of course, this project is long past due. Part of the delay has been uneasiness regarding reaming the mortises into the top, which I had to practice again in order to get a proper result, part of it was cutting out the top in the first place, part of it was not knowing how I would approach the legs, but most of it was just not having the time or motivation to go down to the shop and get something done.

Eventually, I figured out what I wanted to do with the legs, which are sort of a “one-stepped taper thingie” in order to complement the daybed legs. I started with octagon-profile legs, and then cut it down to this:

I’ve improved my efficiency on these. After getting two adjacent sides flat (not necessarily square), I can do almost all of the rest of the initial work on the bandsaw. Getting down to the octagon is easy; first you get a rough square profile, then use the V-track thing to help knock off the corners.

Then, for the tapered tenon, adjust the bandsaw so that you can cut near the sides of cylinder that encloses the tenon. The bandsaw is great because you can cut partway, pull out, rotate to the next facet, then cut the next one. After sawing off the sides, I use a rasp to make the profile round and to final size, and then it’s ready for the tenon cutter. This might sound a little complicated, but it’s easy in practice. Perhaps I could make a video of it.

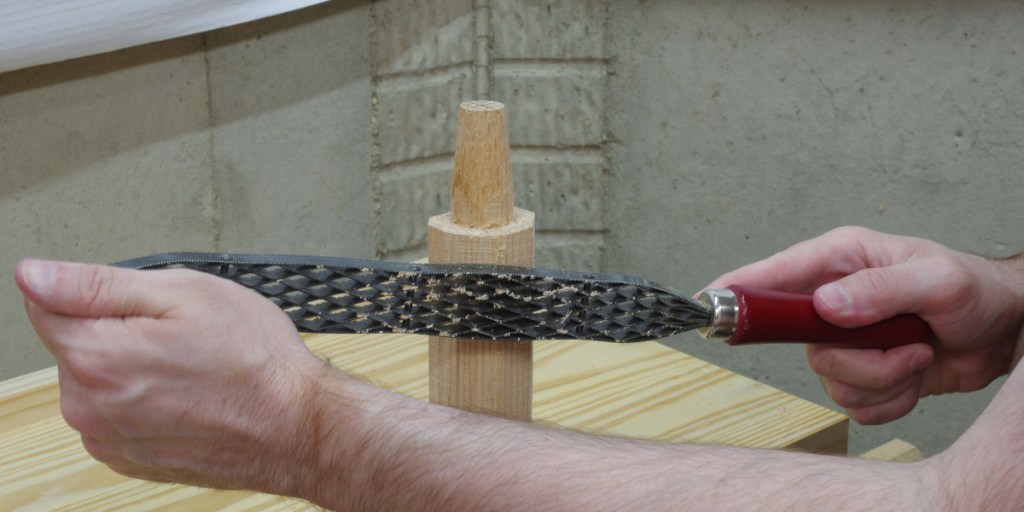

In any case, once I have the initial piece above, I put it in the vise and go to down with the rasp:

Of course, I don’t use just any rasp for this rough work–I use the Shinto saw rasp for most of it.

I use a big English chisel to cut the step between the thicker and thinner parts:

I guess I could make a shaving horse and do this work with the drawknife and spokeshave, but I wonder if it would save me any time. It takes me 10-15 minutes to shape a leg like this, which seems pretty acceptable for a hobbyist like myself.

Of course, I managed to screw up the first leg that I shaped (by cutting the shape 90 degrees to what it was supposed to be relative to the growth rings). I hemmed and hawed a bit over what to do there, but in the end, I decided to remake the leg. It didn’t me much time.

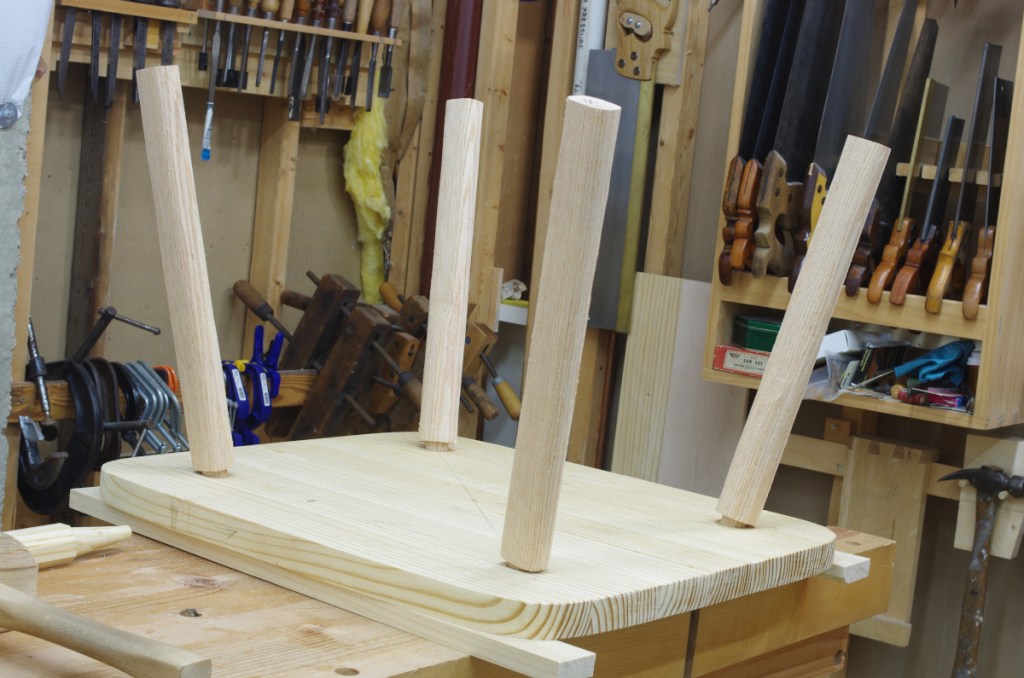

So the legs are shaped and fitted, and the top is also to rough shape:

In theory, this project is almost done. I need to shape the edge of the top, smooth off the legs, glue and wedge in the legs, apply finish, and cut the legs to length. That’s pretty standard stuff, with no problem-solving (figuring out methods and shapes and such).

I’m looking forward to being done with this. I have another video lined up and ready to shoot, but I don’t think I should do that until this is at least in the finishing stage.
